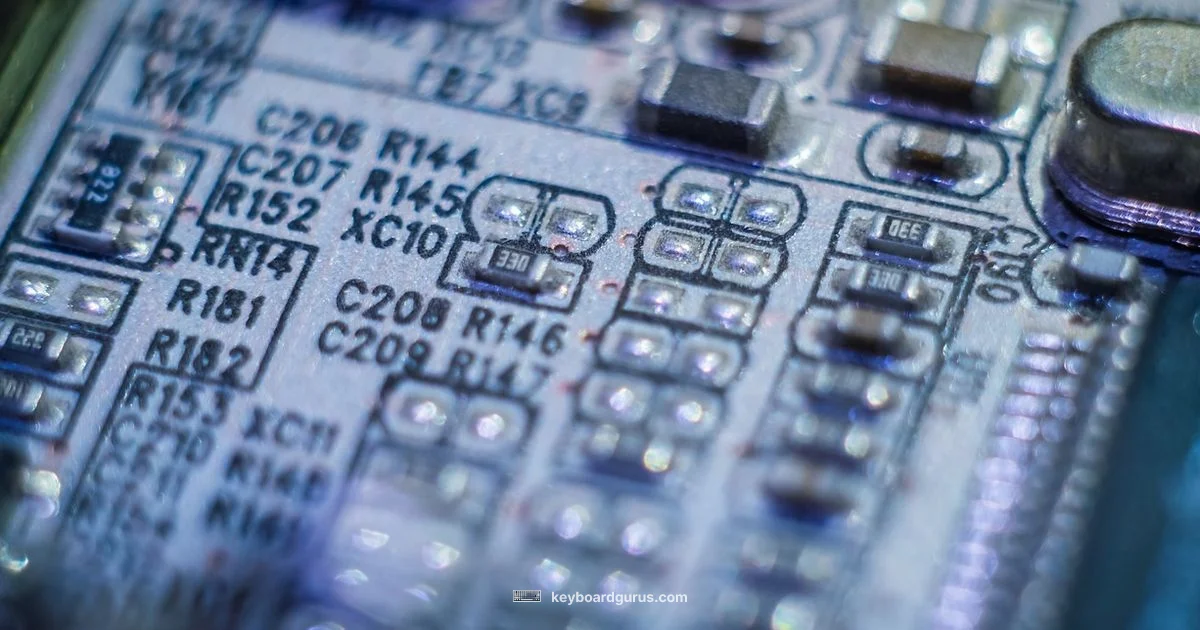

How a Keyboard PCB Works: A Practical Guide
Discover how a keyboard PCB translates keystrokes into signals, from scan matrices to firmware. Keyboard Gurus explains the core flow for builders and enthusiasts.
A keyboard PCB is a printed circuit board that connects switches, diodes, and a controller to translate key presses into digital signals for the computer.
What is a keyboard PCB and why it matters
A keyboard printed circuit board (PCB) is the physical platform that ties together every switch, controller, and peripheral so a keyboard can translate a mechanical press into a digital signal. In practical terms, the PCB routes electrical signals from each key through copper traces to a central microcontroller, which then communicates with the computer. The board also controls features like backlighting and, in many cases, wireless radios. The design choices on a PCB influence reliability, latency, power consumption, and ease of maintenance. For anyone curious about how things arrive on screen when you type, the keyboard PCB is the starting point. It defines how reliably a key press is detected, how many keys can be pressed at once without interference, and how firmware can remap keys or add macros. According to Keyboard Gurus, the core idea is that a single board orchestrates the path from switch to host, enabling enthusiasts to customize layouts without changing the core hardware.
How a keyboard PCB is laid out
A typical keyboard PCB begins with a substrate that hosts copper traces on one or more layers. The most visible layer is the signal routing, where traces form a matrix that connects each switch to a nearby controller. Power planes, ground, and sometimes separate layers for LEDs or wireless modules are built into the board. Modern PCBs use surface mount components, including diodes, resistors, and LED arrays. Clear silkscreen and a logical layout reduce assembly confusion and improve troubleshooting. The layout determines accessibility for hot swapping, ease of cleaning, and compatibility with different switch types. In all cases, thoughtful routing minimizes crosstalk and ensures stable power delivery to the microcontroller and any lighting features.
The scan matrix and diodes
The heart of key detection is a scan matrix: a grid of rows and columns where each key press closes a specific intersection. The controller periodically drives one row and reads the corresponding columns to see which keys are active. Diodes are often added at each switch to prevent ghosting and masking when multiple keys are pressed together. This diode network allows NKRO (n-key rollover) on many layouts while keeping wiring practical. Keyboard Gurus analysis shows that choosing the right matrix size, diode orientation, and polling rate directly impacts typing feel, latency, and reliability, especially on compact layouts where many switches share tracks.
The brain of the keyboard: microcontroller and firmware
The PCB houses a microcontroller that translates the matrix activity into digital messages and sends them to the computer as HID signals. The firmware running on this controller defines how key presses map to actions, handles modifiers, and implements features like debouncing and macros. USB is the predominant physical interface, but many PCBs also support Bluetooth for wireless keyboards. Popular firmware ecosystems include QMK and VIA, which let you customize keymaps, layers, and behaviors without writing code from scratch. The firmware keeps your keyboard responsive and adaptable as your needs evolve, from gaming macros to programming shortcuts.
Key components on the PCB: switches, LEDs, and diodes
Beyond the core matrix and controller, the PCB hosts physical and electronic support for the keyboard’s personality. Diodes prevent ghosting and ensure reliable multiple-key detection. LEDs or RGB lighting are controlled through dedicated traces and drivers, adding visual flair or status indicators. Switch compatibility is a practical concern; hot swap sockets or through-hole pads determine how easily you can swap switches without soldering. Power distribution, decoupling capacitors, and ferrite beads all contribute to stable operation and clean signaling. A well-designed PCB balances signal integrity, lighting capabilities, and ease of maintenance for both new and experienced builders.
From schematic to production: design, testing, and assembly
Creating a keyboard PCB starts with a schematic that maps switches to the controller and outlines the LED and wireless components. Engineers then convert this schematic into Gerber files used by fabricators, who apply copper, solder mask, and silkscreen on a substrate. Prototyping often involves breadboard or quick-turn boards to validate the matrix, debouncing, and firmware hooks before committing to a full run. During testing, engineers verify switch actuation, matrix coverage, lighting uniformity, and USB/wireless reliability. Quality checks, power integrity testing, and firmware validation help catch issues early, reducing post-production failures and returns.
Troubleshooting common PCB issues
Common concerns with keyboard PCBs include ghosting or phantom key presses, which diodes help mitigate but may require a revised matrix layout. Debouncing problems can cause keys to register multiple times or miss presses; firmware debounce settings are typically adjustable. If backlighting or LEDs flicker, power delivery or LED driver configuration is worth inspecting. USB enumeration issues usually trace to either the controller firmware or a mismatched USB descriptor. Keeping firmware up to date and selecting a PCB with generous trace spacing and robust power planes can prevent many frustration points for builders.
Customization and firmware options for enthusiasts
Customization thrives in this space, thanks to open firmware ecosystems. QMK provides a powerful framework for defining layers, macros, and complex keymaps, while VIA offers live-updating layouts and easier onboarding for newcomers. Hot-swappable sockets enable switch swaps without soldering, expanding experimentation and customization possibilities. Understanding the PCB’s baseline capabilities helps you gauge which customizations will work best for your setup, whether you are optimizing for gaming latency, programming ergonomics, or compact portability. The Keyboard Gurus team recommends starting with a kit that supports hot swapping and open firmware to learn the ropes before tackling more advanced features.
Got Questions?
What is the main purpose of a keyboard PCB?
The keyboard PCB serves as the electrical backbone that routes signals from each switch to the controller and ultimately to the computer. It enables accurate key detection, power management, and features like backlighting and macros.
The keyboard PCB is the circuit board that routes your key presses to the controller and then to your computer, enabling all the keyboard features.
What is a key matrix on a keyboard PCB?
A key matrix is a grid of rows and columns that lets the controller identify which key is pressed by detecting closures at the intersections. Diodes help prevent signals from interfering when multiple keys are pressed.
A key matrix is a grid that helps the keyboard detect which key you pressed by checking intersections in rows and columns.
Why do some PCBs support hot swapping?
Hot swapping lets you replace switches without soldering, making experimentation and customization easier. It relies on sockets or modular PCB designs that preserve reliable electrical contact.
Hot swapping lets you swap switches without soldering, making upgrades quick and easy.
What is firmware in a keyboard?
Firmware is the software running on the keyboard's microcontroller that interprets the scan matrix and sends HID events to the computer. It determines behavior, layers, and macros.
Firmware is the software inside the keyboard that decides how keys behave and how they talk to your computer.
What causes ghosting and how can it be prevented?
Ghosting occurs when multiple keys are pressed and signals mix, leading to incorrect inputs. Properly placed diodes in the matrix help prevent this, along with careful layout design.
Ghosting is when multiple key presses get mixed up. Using diodes in the matrix helps prevent it.
Do all keyboards use USB?
Most keyboards use USB HID, but many wireless options rely on Bluetooth or other wireless protocols. The PCB must support the intended interface and corresponding firmware.
Most keyboards are USB, but some use Bluetooth or other wireless methods. Check the PCB's supported interfaces.
What to Remember
- Understand the matrix scanning concept and controller role
- Know how diodes prevent ghosting and enable NKRO
- Explore firmware options like QMK and VIA for customization
- Differentiate hot swap versus soldered builds for upgrades
- Plan layout and power delivery to improve reliability
